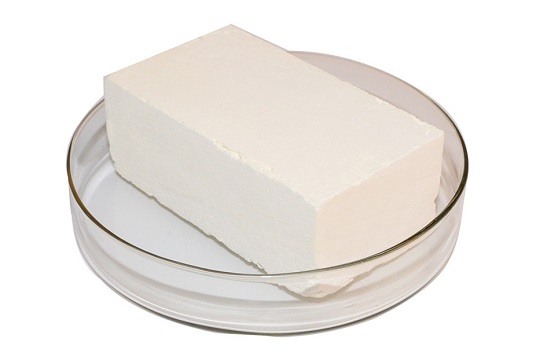

Zinc Sulfide (ZnS) Sinter Cubiod Pieces

Specification: Sinter cubiod pieces, 99.9%, 99.99%

Appearance: White to light yellow

Size: 80*45*30mm, upon demand

Unit: KG

Brand: ATS

Advantage: High quality, complete specifications,

applied for multiple uses

Application Fields: Optical coating, decorative coating

Usage:Holographic anti-counterfeiting film, Decorative coating


  • Product Information
  • Sales Contact
  • In 1986, ATS began to produce ZnS Vacuum coating material, more than 30 years’ experience in the production of the product. From the original product ZnS powder, to the development of sintered tablet and high purity ZnS crystal, ATS keep on developing new specification. High output, various types and specification, wide application. Our CVD ZnS crystal can also be applied in infrared coating.



    Zinc Sulfide is a kind of high index material which can be used in optical and electro-optical applications, including beam splitters and bandpass filters, muti-layers.


    ZnS Material Properties

    CAS Number

    Density (g/cm3)

    Evaporation

    Temperature()

    Refractive Index

     at 550nm

    Transparency

    Range(μm)

    Evaporation Source

    1314-98-3

    4.10

    1100

    2.3~2.4

    0.35~14.5

    E

    Applications

    1. ZnS SinterHolographic anti-counterfeiting film, Decoration coating

         2. ZnS CrystalCold light coating; Filter; HR coating; Infrared coating


    Specification information

    Type

    Shape

    Color

    Purity

    Package

    Storage

    Sinter

    Tablets

    10×6 mm

    20*15 mm

    30×17 mm

    White to light yellow

    99.9%

    99.99%

    1 KG/Bag

    Avoid exposure to sunlight &acid

    Keep dry

    Cuboid piece

    80*45*30 mm

    Granules

    1-3 mm3-5 mm

    Crystal

    Granules

    1-40 mm

    Upon demand

    Light yellow

    Transparent

    99.99%

    Cutting piece

    10×10×10 mm

    25×25×12 mm
